Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | ADA 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| Face to Face (mm) | 140.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | JC Valves |
| Fire safe | Yes |

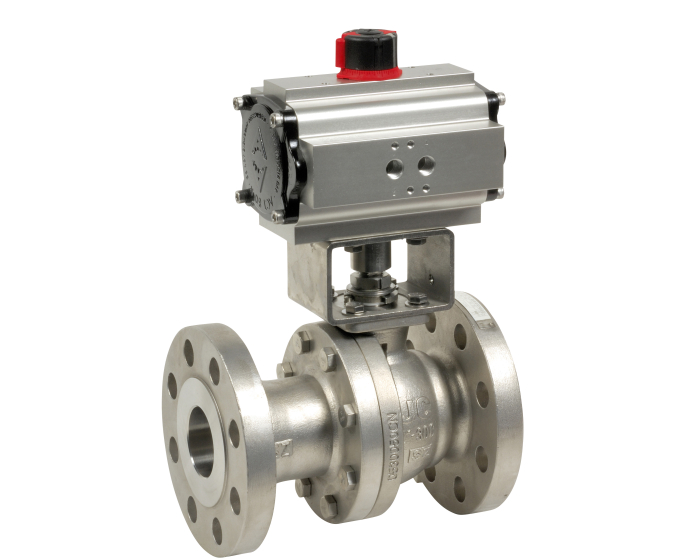

Stainless steel ball valve 530IIT + ADA/ASR pneumatic actuator
The 530IIT series JC VALVES stainless steel ball valve has a CF8M body and ball, and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
