Reference 706 two-piece body stainless-steel ball valve
Our reference 706 is a two-piece body ball valve made of ASTM A351 CF8M stainless steel. This highly reliable valve is mostly used in a great number of industries such as the chemical, petrochemical, and pharmaceutical fields, hydraulic installations, or compressed air systems to name only a few. Provided with threaded BSP connections, it is also a long face-to-face valve according to EN 16722 Series M3 (DIN 3202 M3). Moreover, our reference 706 offers the following features:
- Full bore
- PTFE seat
- Anti-blowout stem
- Blue flat lever or butterfly handle
- PTFE gland packing
- Locking device
- Solid ball
This two-piece body stainless-steel ball valve is suitable for use with temperatures ranging from -50 °C to +180 °. The maximum allowable pressure is 63 bar up to DN 3/4. Last, it should also be noted that this valve is available from ¼ to 4 sizes.
Details
| DN inches NPS | 1/2'' |
|---|---|
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 16722 M3 Series |
| DIN face-to-face standard | DIN 3202 M3 |
| Face to face standard | EN 16722 M3. DIN 3202 M3 |
| Thread standard | ISO 228-1 |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Antistatic device | Yes |
| Opening device | Handle |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Lockable | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 3.0 |
| DN | 15 |
| Face to Face (mm) | 1050.0 |
| Fluid | Acids |
| Kv (m³/h) | 25.0 |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| PS (bar) | 63 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |

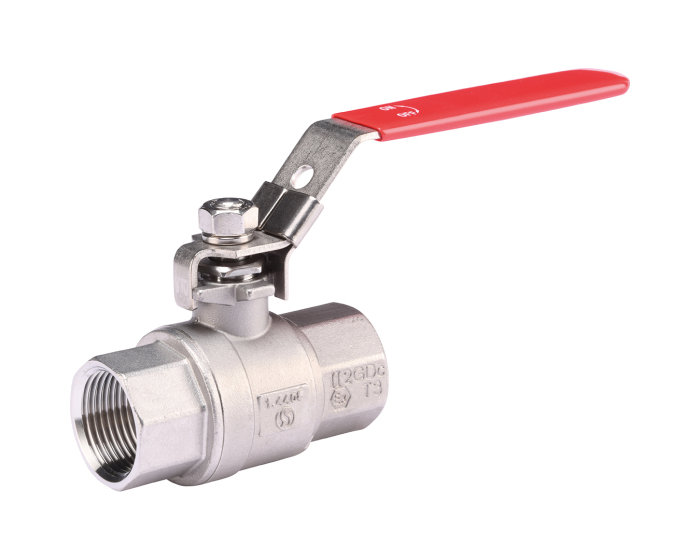

Stainless steel ball valve 706 2-piece body BSP female/female DIN M3
The Sferaco 706 series ball valve, 2-piece body, stainless steel, with BSP female/female connection and DIN3202 M3 face to face, full bore, PTFE packing gland, ATEX compliant.
