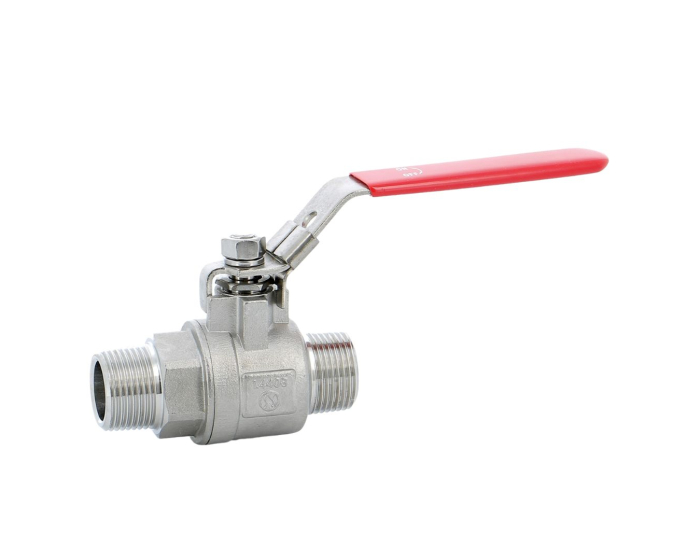

Stainless steel ball valve 709 2-piece body BSP MM
The Sferaco 709 series ball valve, 2-piece body, male-male connection, reduced bore, with padlockable handle for chemical industries, compressed air, hydraulic installations.
Documentation
Certificate of Conformity
pdf - 193.4 ko
Notice montage robinet à tournant sphérique 2 pièces taraudé
pdf - 123.7 ko
Installation operating manual ball valve 2 pieces
pdf - 110.4 ko
Details
Option certificate 3.1 | Yes |
---|---|
CE risk category | III Module H |
Thread standard | ISO 7-1 R |
Tightness test standard | ISO 5208. Rate A |
Stem sealing material | PTFE gland packing |
Opening device | Handle |
Application | Industry |
Shaft/stem matérial | Stainless steel AISI 316 |
Lockable | Yes |
Torque (Nm) | 3.0 |
DN | 15 |
Face to Face (mm) | 1060.0 |
Fluid | Acids |
Kv (m³/h) | 25.0 |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 2 |
Bore | Reduced |
ISO pad 5211 | No |
Packing gland | Yes |
PS (bar) | 63 |
Connections | BSP MM |
Seats | PTFE-Glass |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 180 |
TS min (°C) | -20 |
Ball valve design | 2-piece body |
Warranty period | 2 years |
CE | Yes |
Handle material | Stainless steel AISI 304 |
Handle type | Red lever |
