Documentation

Certificate of Conformity 716 pdf - 193.8 ko

Certificate of Conformity 716L pdf - 193.8 ko

Fiche technique vanne à sphère inox forgé 2 pièces 800lbs pdf - 518.8 ko

Notice montage robinet à tournant sphérique 2 pièces forgé 800lbs pdf - 164.2 ko

Installation operating manual ball valve 2 pieces forged 800lbs pdf - 124 ko

Technical datasheet 2 pieces forged stainless steel ball valve 800lbs pdf - 403.5 ko

Spare parts

Details

Details
DN inches NPS	1/2''
Option certificate 3.1	Yes
CE risk category	III Module B+C2
NACE MR0175	Yes
Fire safe standard	BS 6755-2
Thread standard	ISO 228-1
Tightness test standard	API 598
Stem sealing material	Graphite
Antistatic device	Yes
Steam	Yes
Opening device	Handle
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel ASTM A479 type 316L
Lockable	No
ATEX compatible	Yes
DN	15
Face to Face (mm)	1050.0
Fluid	Hydrocarbons. gas
Body material	Stainless steel F316/F316L
Number of ways	2
Bore	Full
ISO pad 5211	No
PS (bar)	132
Connections	BSP FF
Seats	PTFE-Graphite
Ball material	Stainless steel ASTM A276 316L
TS max (°C)	180
TS min (°C)	-30
Ball valve design	2-piece body
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Handle material	Carbon steel
Handle type	Black lever
Fire safe	Yes

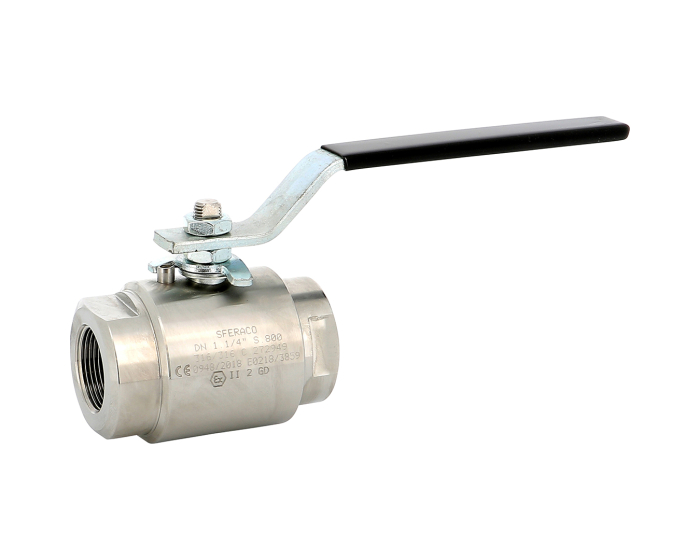

Stainless steel ball valve 716 2-piece body Forged 800lbs

2-piece body Sferaco 716 series ball valve, in forged stainless steel, Class 800, full bore, fire safe and ATEX compatible for the oil and gas industries.

Choose your configuration

Connections

Lockable

See all configurations

3D file

Réf.

CONF716004

(Indicative price) €195.08

Quantity

Configurations

Product	Reference	Price	Stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 1/4''	Référence 716002	P.U HT €195.08	Disponibilité 25 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 3/8''	Référence 716003	P.U HT €195.08	Disponibilité 28 pcs available in stock
Produit Stainless steel ball valve 716 2-piece body BSP Forged 800lbs 1/2''	Référence 716004	P.U HT €266.93	Disponibilité 129 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 3/4''	Référence 716005	P.U HT €390.13	Disponibilité 20 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 1''	Référence 716006	P.U HT €559.53	Disponibilité 17 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 1''1/4	Référence 716007	P.U HT €782.83	Disponibilité 16 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 1''1/2	Référence 716008	P.U HT €1,054.90	Disponibilité 41 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body BSP Forged 800lbs 2''	Référence 716009	P.U HT €1,593.90	Disponibilité 3 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 1/4''	Référence 716102	P.U HT €195.08	Disponibilité 23 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 3/8''	Référence 716103	P.U HT €195.08	Disponibilité 83 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 1/2''	Référence 716104	P.U HT €266.93	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 3/4''	Référence 716105	P.U HT €390.13	Disponibilité 20 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 1''	Référence 716106	P.U HT €559.53	Disponibilité 14 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 1''1/4	Référence 716107	P.U HT €782.83	Disponibilité 2 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 1''1/2	Référence 716108	P.U HT €1,054.90	Disponibilité 19 pcs available in stock
Produit Stainless steel ball valve 716 2 piece body NPT Forged 800lbs 2''	Référence 716109	P.U HT €1,593.90	Disponibilité 12 pcs available in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 1/4'' - Locking device	Référence 716L002	P.U HT €253.13	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 3/8'' - Locking device	Référence 716L003	P.U HT €253.13	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 1/2'' - Locking device	Référence 716L004	P.U HT €325.00	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 3/4'' - Locking device	Référence 716L005	P.U HT €448.20	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 1'' - Locking device	Référence 716L006	P.U HT €617.60	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 1''1/4 - Locking device	Référence 716L007	P.U HT €840.90	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 1''1/2 - Locking device	Référence 716L008	P.U HT €1,112.95	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L BSP forged 800lbs 2'' - Locking device	Référence 716L009	P.U HT €1,651.95	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 1/4'' - Locking device	Référence 716L102	P.U HT €253.13	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 3/8'' - Locking device	Référence 716L103	P.U HT €253.13	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 1/2'' - Locking device	Référence 716L104	P.U HT €325.00	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 3/4'' - Locking device	Référence 716L105	P.U HT €448.20	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 1'' - Locking device	Référence 716L106	P.U HT €617.60	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 1''1/4 - Locking device	Référence 716L107	P.U HT €840.90	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 1''1/2 - Locking device	Référence 716L108	P.U HT €1,112.95	Disponibilité Currently not in stock
Produit Stainless steel ball valve 716L NPT forged 800lbs 2'' - Locking device	Référence 716L109	P.U HT €1,651.95	Disponibilité Currently not in stock
