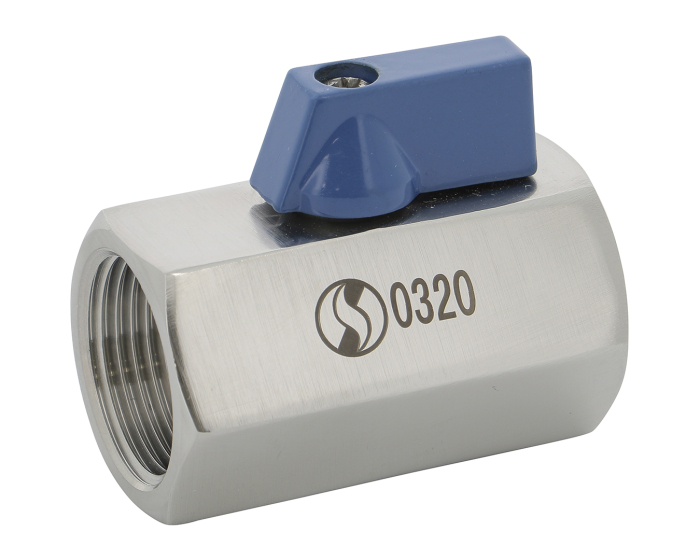

Stainless steel ball valve 732FF BSP female/female
Syveco offers the 1 piece body polished stainless steel reduced bore mini ball valve, female BSP
Documentation
Details
| DN inches NPS | 1/2'' |
|---|---|
| Option certificate 3.1 | Yes |
| Thread standard | ISO 228-1 |
| Opening device | Lever |
| Application | Industry |
| DN | 15 |
| Face to Face (mm) | 520.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Reduced |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Handle type | Blue handle |
