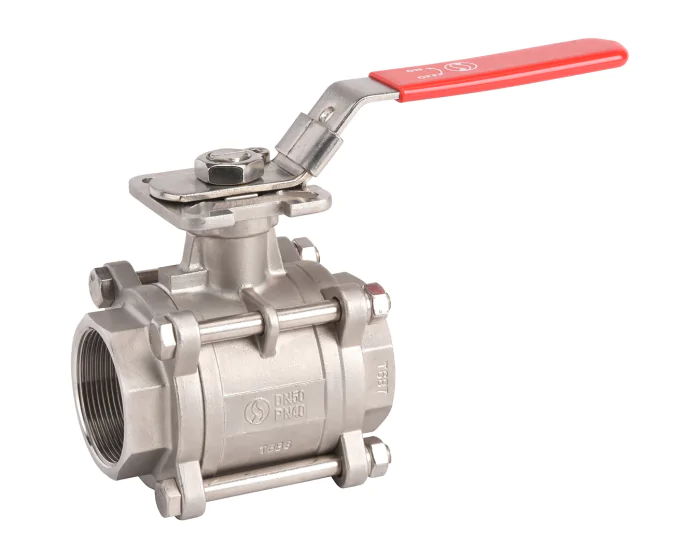

Stainless steel ball valve 743 3-piece body NPT + ISO pad
The 743 series 3-piece body ball valve with ISO pad 5211 , NPT, full bore for fluid shut-off in chemical and pharmaceutical systems.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| CE risk category | III Module H |
| Thread standard | ANSI B1.20.1 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 2.5 |
| Diameter of passage | 15.00 |
| DN | 15 |
| Face to Face (mm) | 895.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20.7 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | NPT FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| CE | Yes |
| Handle type | Red lever |
