Documentation
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | PTFE gland packing + FKM O-ring |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 17 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 126.0 |
| DN | 50 |
| Face to Face (mm) | 2235.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 160.6 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| 3-way type | T |
| Ball valve design | 3-way |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Carbon steel |
| Handle type | Tubular |

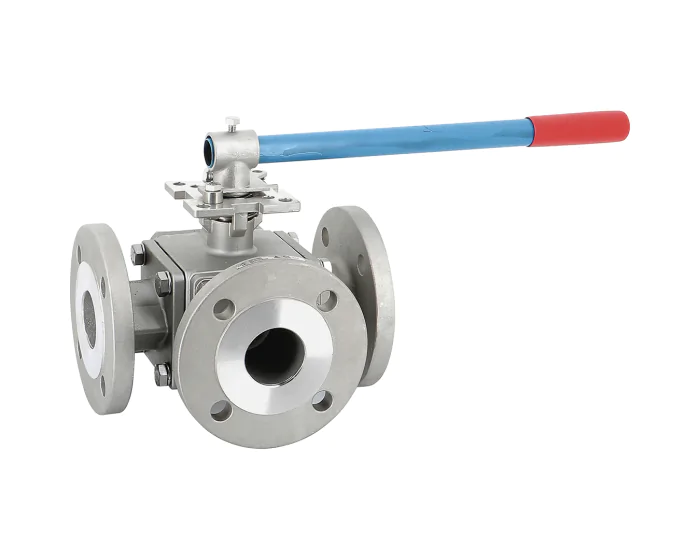

Stainless steel ball valve 786 3 way T-port RF PN16
The 786 series ball valve is a 3-way flanged PN16 model, made of stainless steel, T-shaped port, with injectable shaft, ISO pad, and ATEX compatibility for chemicals, petrochemicals, heating, water, and compressed air.
