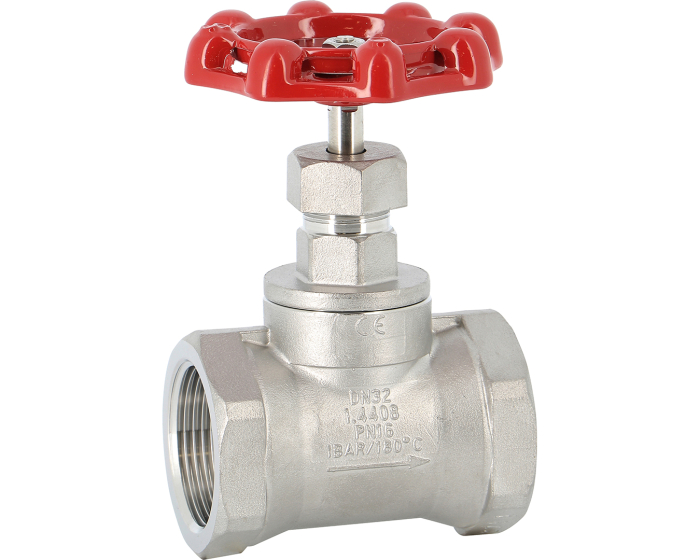

Stainless steel globe valve 485 threaded
The series 485 globe valve has a BSP female thread, is made of stainless steel and has a PTFE gland. It is suitable for food products and complies with standard CE 1935/2004.
Documentation
Certificat FDA Robinet à Soupape Inox
pdf - 215.2 ko
Certificate of Conformity
pdf - 192.9 ko
Fiche technique
pdf - 480.4 ko
Notice montage robinet soupape pointeau taraudé
pdf - 169.8 ko
Technical datasheet stainless steel globe valve female BSP
pdf - 431.4 ko
Details
Option certificate 3.1 | Yes |
---|---|
DN metric | 15/21 |
Bonnet material | Stainless steel ASTM A351 CF8M |
Type of seat | Conical |
Thread standard | ISO 228-1 |
Tightness test standard | EN 12266-1. Rate D |
Opening device | Handwheel |
Centering ring | Yes |
Application | Industry |
Shaft/stem matérial | Stainless steel AISI 316 |
Opening device/signal | Manual |
DN | 15 |
Face to Face (mm) | 52.0 |
Sealing | Metal / Metal |
Fluid | Acids |
Kv (m³/h) | 1.9 |
Body material | Stainless steel CF8M (1.4408) |
Bore | Reduced |
Packing gland | Yes |
PS (bar) | 16 |
Connections | BSP FF |
Seats | Stainless steel ASTM A351 CF8M |
TS max (°C) | 180 |
TS min (°C) | -20 |
Warranty period | 2 years |
Type of stem | Rotating |
Plug material | Stainless steel AISI 316 |
