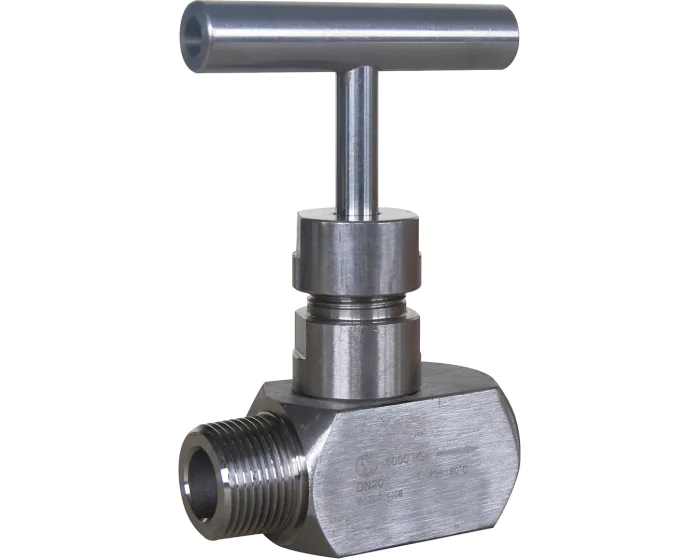

Stainless steel needle valve 488 BSP male/female
The 488 series needle valve in ASTM A351 CF8M stainless steel, male / female BSP connection, reduced bore, ATEX compatible, with PTFE packing gland, FKM O-ring.
Documentation
Certificate of Conformity
pdf - 190.8 ko
Fiche technique robinet pointeau inox MF BSP
pdf - 416.1 ko
Notice montage robinet soupape pointeau taraudé
pdf - 169.8 ko
Details
Option certificate 3.1 | Yes |
---|---|
DN metric | 15/21 |
Bonnet material | Stainless steel ASTM A240-304 |
Type of seat | parallel |
Thread standard | ISO 7-1 R/ISO 7-1 Rp |
Tightness test standard | API 598 |
Opening device | Handle |
Centering ring | Yes |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 304 |
ATEX compatible | Yes |
Opening device/signal | Manual |
Diameter of passage | 6 |
DN | 15 |
Face to Face (mm) | 69.0 |
Sealing | Metal / Metal |
Kv (m³/h) | 1.3 |
Body material | Stainless steel CF8M (1.4408) |
Bore | Reduced |
PS (bar) | 400 |
Connections | BSP MF |
Seats | Stainless steel ASTM A351 CF8M |
TS max (°C) | 180 |
TS min (°C) | -20 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rotating |
Plug material | Stainless steel ASTM A240-304 |
