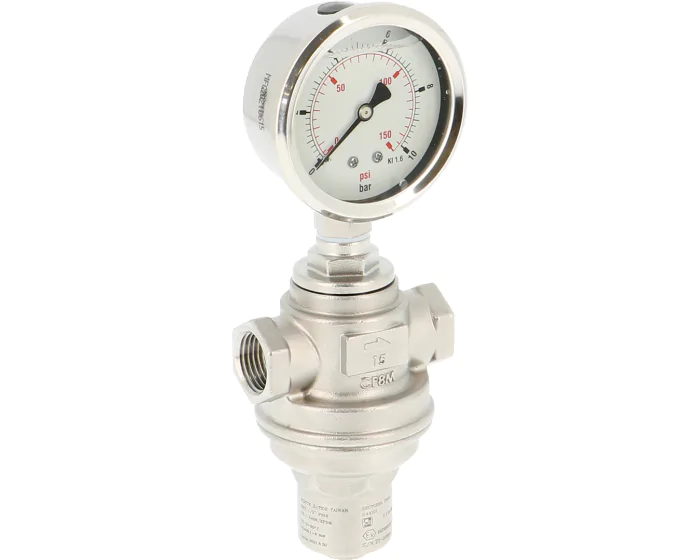

Stainless steel pressure reducing valve 2440 PRVW ACS
The ELITE pressure reducing valve type PRV-W made of ACS stainless steel is designed for the pressure reducing function of fluids such as drinking water. EPDM tightness. PS : 16 bar. TS: -15°C / +80°C. G threaded fittings. ATEX.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| ATEX compatible | No |
| Face to Face (mm) | 285.0 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 2.10 |
| Body material | Stainless steel CF8M (1.4408) |
| Downstream pressure range (bar) | 1 / 6 |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | -15 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
