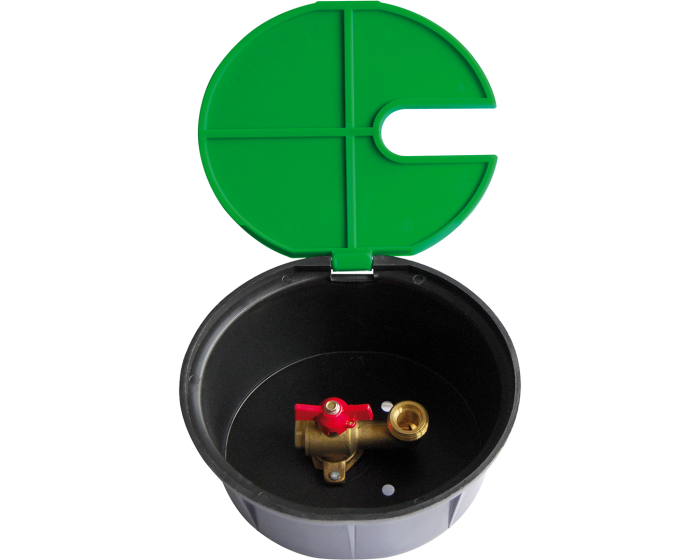

Watering box 695
Watering box 695 with polypropylene hydrant and 4MS brass ball valve. Includes closable cap, connected hose, and angle valve with PTFE packing gland. Designed for watering systems, ensuring efficient and reliable operation.
Documentation
Details
| DN inches NPS | 1/2'' |
|---|---|
| DN metric | 15/21 |
| Thread standard | ISO 228-1 |
| Stem sealing material | PTFE gland packing |
| Type of coating | Brushed |
| Opening device | Handle |
| Application | Watering |
| Shaft/stem matérial | Stainless steel AISI 410 |
| DN (Output) | 3/4'' |
| Fluid | Cold water |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Reduced |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | BSP MF |
| Seats | PTFE |
| Ball material | Chrome-plated brass |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Handle material | Aluminium |
| Handle type | Red handle |
